- Built-In Frame Synchronizer

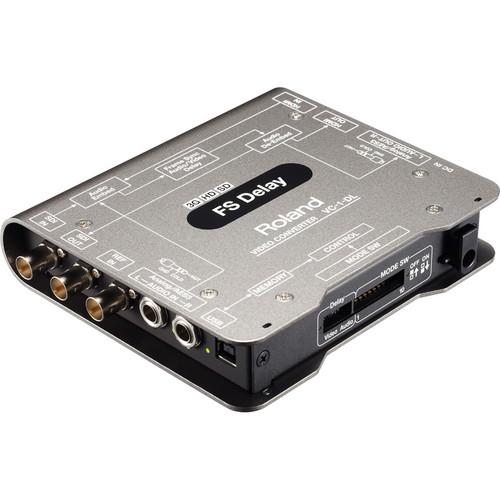

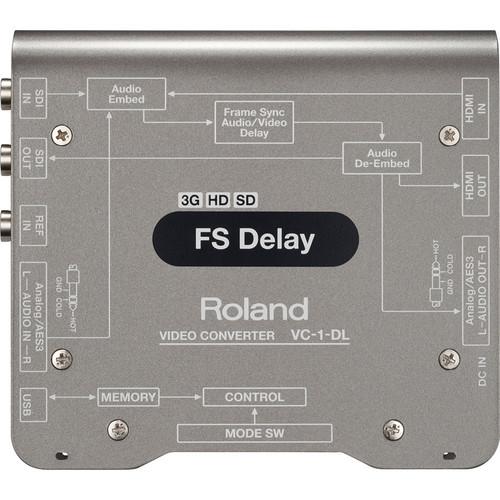

The VC-1-DL Bi-Directional SDI/HDMI Video Converter with Delay and Frame Sync from Roland provides high picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors that are sometimes found with other video converters. The VC-1-DL also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1-DL also supports both level A and B 3G-SDI, thereby enabling you to connect a variety of high quality SDI sources.
The VC-1-DL is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supported, thereby ensuring that high-quality audio signals can be maintained through the signal flow.
