SmallHD Cine 7 ARRI Kit




Key Features
  • 7" 1920 x 1200 Touchscreen Display
  • ARRI Camera Control Kit, Control Cable
  • 1800 cd/m², 10-Bit IPS LCD Panel
  • 8GB SD Card, Sun Hood, Power Cable

Use the lightweight Cine 7 Touchscreen On-Camera Monitor ARRI Kit from SmallHD to provide professional monitoring for your ARRI ALEXA Mini, Mini LF, or AMIRA camera with a sharp 7" display suitable for indoor or outdoor use. The kit includes the Cine 7 monitor, an L-series battery mount, a sun hood, a screen protector, an 8GB SD card, and the ARRI control kit that includes software, as well as control and power cables.

The Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.

The ARRI control software loads onto the monitor and allows you to control ARRI camera functions on your ARRI ALEXA Mini, Mini LF, or AMIRA camera such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen. The included control cables allow the monitor to connect to the camera.

The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive Swipe OS3, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series mount battery mount enables you to power the unit.

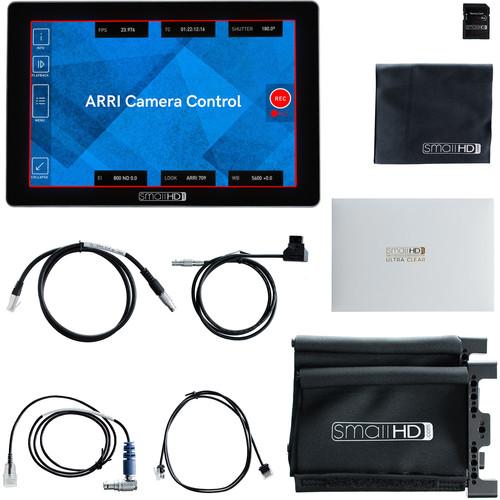

In the Box
  • SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit (L-Series)
  • UltraClear Screen Protector
  • 8GB SD Card
  • Limited 1-Year Warranty
