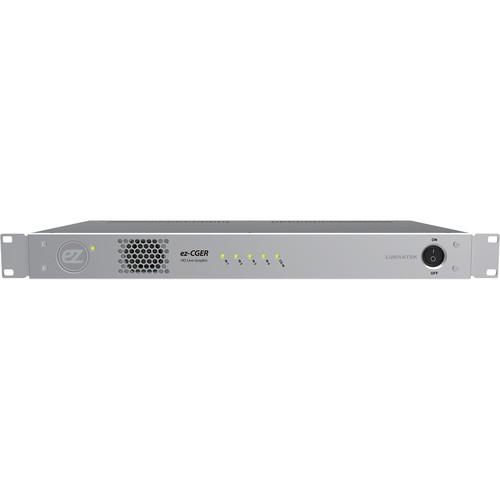

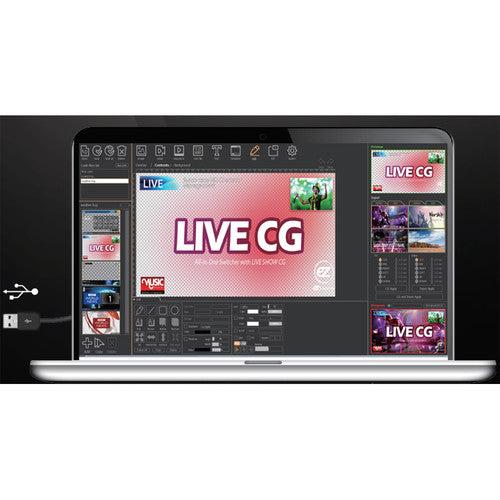

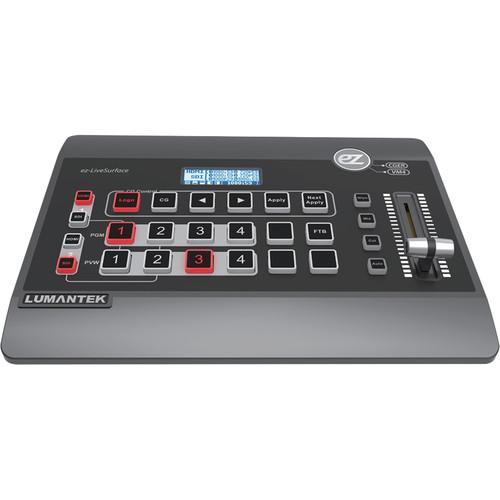

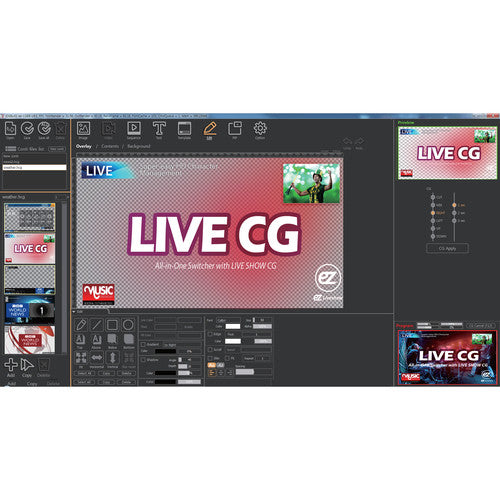

The ez-CGER HD Switcher & Graphic Mixer from Lumantek includes the ez-CGER hybrid system and the ez-LiveSurface control surface. The ez-CGER is comprised of CG software and a video switcher. It communicates with the CG software for system control, and can be connected to a PC through USB 3.0 ports. The system supports up to six media input sources via four HD-SDI and two HDMI ports. The CG is mixed with the input sources by software via USB 3.0 and transmitted through HD-SDI/HDMI/VGA outputs.

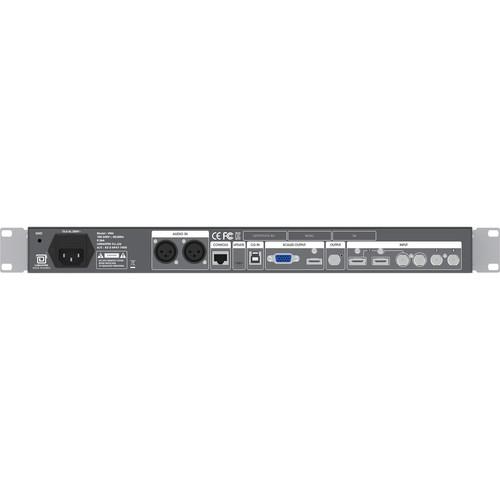

The system also features one each SDI, HDMI, and VGA output ports for transmitting signals with various resolutions. The multiview output enables users to monitor up to four live input sources, as well as PiP. The ez-CGER system supports HDMI/SDI embedded audio or XLR external audio. In addition, SDI or HDMI input audio inputs are synchronized with the video and can be switched seamlessly without generating any noise.
