- Super 16mm-Sized Image Sensor
- Active Micro Four Thirds Lens Mount
- 13 Stops of Dynamic Range
- Records FHD 1920 x 1080 CinemaDNG Raw

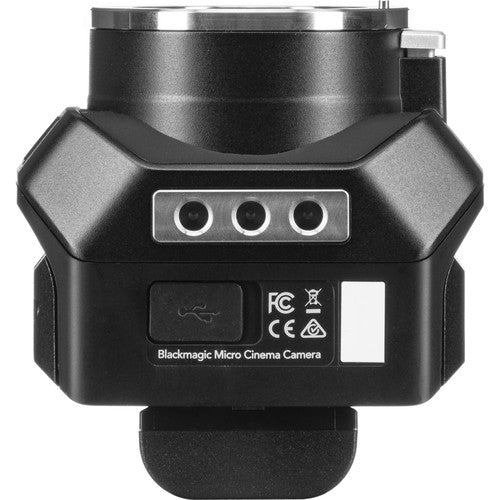

The Blackmagic Micro Cinema Camera is a miniature digital camera with a Super 16mm-sized sensor designed to be operated remotely and capture footage from virtually anywhere. The image sensor supports 1080p video up to 60 fps and 13 stops of dynamic range. The camera is equipped with an active MFT mount that can accept native MFT lens or be adapted to a wide range of other modern and vintage lenses using optional third party adapters. Video is recorded to SDHC/SDXC memory cards using the 12-bit CinemaDNG Raw format or 10-bit Apple ProRes family of codecs.

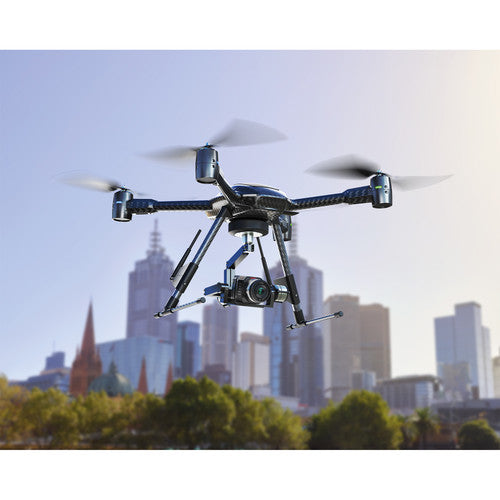

Compact in size, the Micro Cinema Camera is similar in size and shape to an action camera, making it well suited for mounted on helmets for POV action sequences, suspended from quadcopters for aerial shots, or any place where a larger camera can't fit. To facilitate camera control when the camera is mounted in impossible-to-reach locations, you can operate it remotely and view a live video feed thanks to the camera's expansion port. An included breakout cable supports four analog PWM radio remote control inputs, so you can map camera functions to the dials, knobs, buttons, and joysticks on model airplane remotes, such as start/stop recording, focus, and iris (with compatible MFT lenses). For more control, you can use the 18-channel S.bus control input with Futaba radio control equipment or custom embedded controllers.
In addition to radio control support, the breakout cable also provides LANC control, power, genlock, and composite video output for connecting to wireless video transmitters, letting you see what you're recording while remote controlling the camera. For higher quality monitoring, the camera has an HDMI output. For remote recording, you can attach a Canon LP-E6 type battery to the back of the camera to power is for up to 1.5 hours. One LP-E6 battery is included. The camera also has a 12V DC input via the breakout cable for powering the camera from external power supplies for longer shooting times.
