- For Stage, Broadcast TV, and Lecturers
- 20 Hz to 20 kHz Frequency Response
- Omnidirectional Polar Pattern
- Ergonomic Under-Ear Design

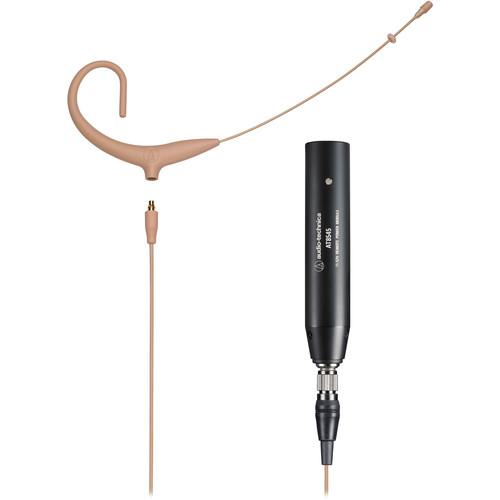

Delivering clear and accurate sound in an inconspicuous package, the ultra-lightweight, high-SPL BP892x MicroSet® hooks securely behind either ear for hours of comfortable use. Its subminiature omnidirectional condenser capsule delivers clear, natural audio with a flat, extended frequency response. Like the other two BP89x models, the BP892x includes a detachable, field-replaceable cable with a variety of available terminations for use in wired and wireless applications. The BP892x is a headworn condenser microphone with an omnidirectional polar pattern. It is designed to provide intelligible natural audio for stage and television talent, lecturers and houses of worship. The microphone requires 11V to 52V phantom power for operation (wired only). The microphone includes a 1.4 m (55") detachable, field-replaceable cable. Its free end

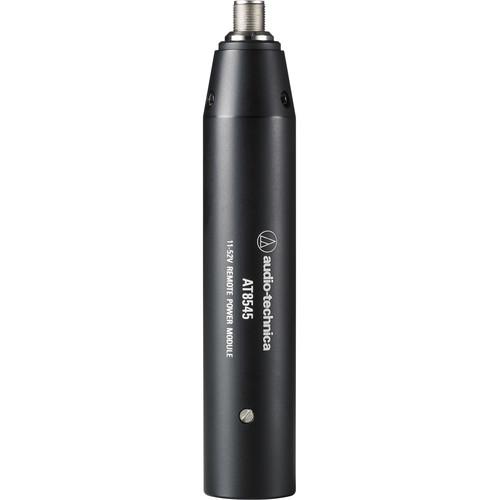

connects to the provided AT8545 power module via a screw-down 4-pin connector. The connector is also available in a variety of terminations for use with Audio-Technica and other manufacturers' body-pack transmitters. The output of the power module is a 3-pin

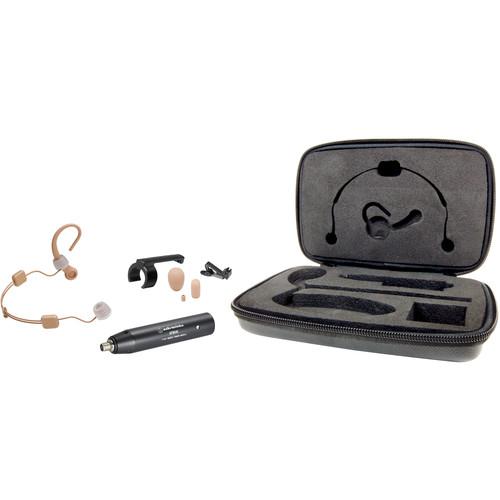

XLRM-type connector. A recessed switch in the power module permits choice of flat response or low-frequency rolloff (via integral 80 Hz high-pass UniSteep® filter) to help control undesired ambient noise. The microphone comes equipped with a power module, a cable clip, a dual-ear mount, two windscreens, two element covers, a moisture guard, a belt clip and a protective carrying case. The microphone is available in black and beige. The BP892x-TH is terminated with a cH-style screw-down 4-pin connector for use with the included AT8545 power module.
