- For Panels, Meetings, and Conferences
- 2 x Tabletop Boundary Mics/Transmitters
- Receiver Link for Multichannel Setups
- 2 x Triple-Diversity Rackmount Receivers

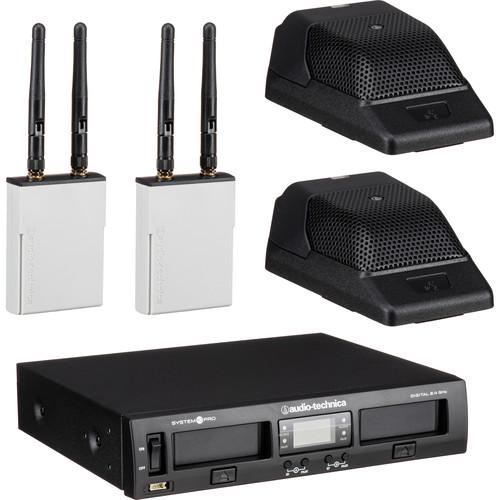

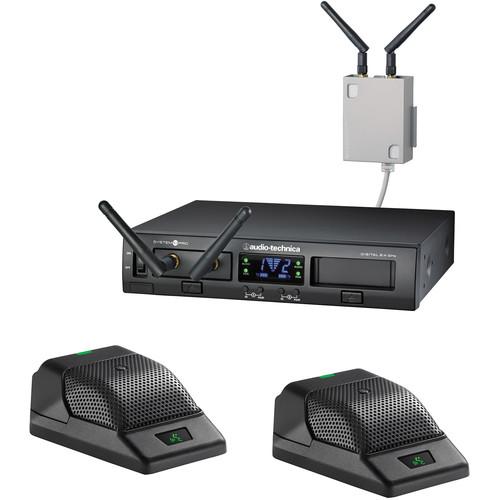

The Audio-Technica ATW-1366 System 10 PRO Rack-Mount wireless system brings new versatility to the System 10 family of 2.4GHz digital wireless products. With remote-mountable receiver units and the simultaneous use of up to 10 channels, System 10 PRO combines innovation with rock-solid performance, easy setup and clear, natural sound quality.
ATW-RC13 Receiver Chassis
The ATW-RC13 half-rack receiver chassis features two receiver unit docks, each designed to house an ATW-RU13 receiver unit. Two RJ45 connectors on the rear of the chassis allow each receiver unit to be released from the chassis and mounted up to 328ft (100m) away via standard UTP cable. The chassis is also equipped with IN/OUT RJ12 connectors that can be used to link the chassis to another chassis (up to five chassis - 10 receiver units - can be linked together) allowing for simultaneous use of all receivers and increased stability of a multichannel system. The front of the chassis is equipped with a System ID Display that indicates the RF signal strength, System ID number and battery level for the transmitter currently engaged with each receiver unit. The display also shows if the chassis is currently linked to another chassis. Additionally, the chassis features an AF level control, ground lift switch, unbalanced 1/4" output connection and balanced XLRM-type output connection for each receiver unit.

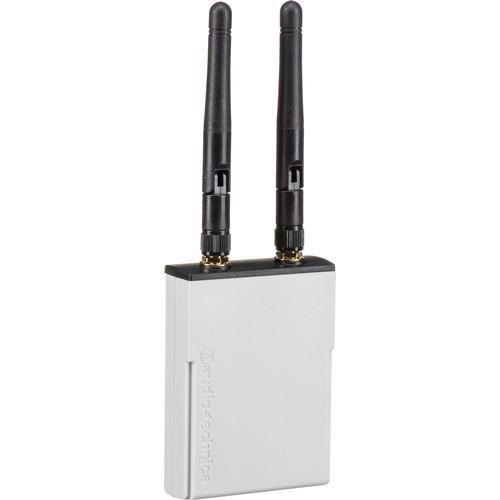

ATW-RU13 Receiver Unit
The ATW-RU13 receiver unit features two detachable antennas that screw onto the face of the unit via SMA connectors. The rear of the unit is equipped with a 1/4"-20 thread socket for mounting the receiver unit remotely to a tripod or other device with a 1/4" screw. An RJ45 connector, also on the rear of the unit, allows a remotely mounted receiver unit to be connected to the chassis with UTP cable. An LED status indicator, located between the mounting socket and the RJ45 connector, blinks slowly when the receiver unit is not paired with a transmitter, blinks quickly during the pairing process, and illuminates solidly green once the receiver unit is paired with a transmitter.
ATW-T1006 Boundary Mic/Transmitter
A perfect fit for conference rooms and other meeting spaces, the ATW-T1006 System 10 Boundary Microphone/Transmitter pairs with any System 10 or System 10 PRO digital wireless receiver to provide rock-solid, 2.4GHz wireless performance with clear, natural sound quality. This cardioid condenser boundary mic is equipped with a touch-sensitive user switch that can toggle between talk and mute modes, or function as a press-to-talk or press-to-mute button. Two red/green LEDs - one visible from the front of the unit, the other from the rear - indicate toggle/talk/mute mode, battery level, and charging status.
