Tilta Universal Battery Plate - Gold Mount




Key Features
  • Power Camera and Accessories
  • Gold Mount Battery Plate
  • 14.8V 2-pin LEMO-Type Output
  • 14.8V 3-Pin Fischer, 4 x D-Tap Outputs

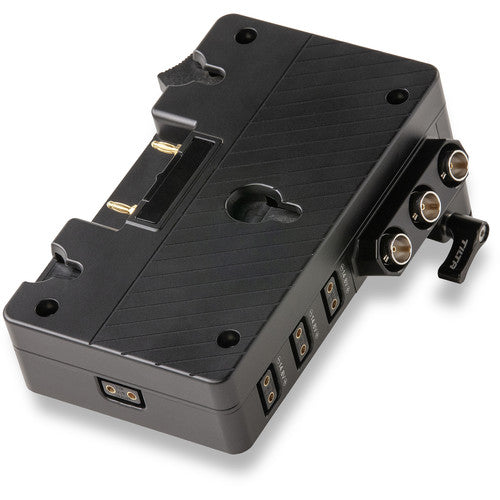

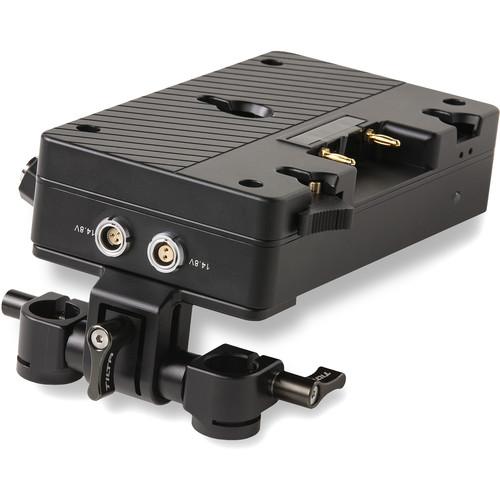

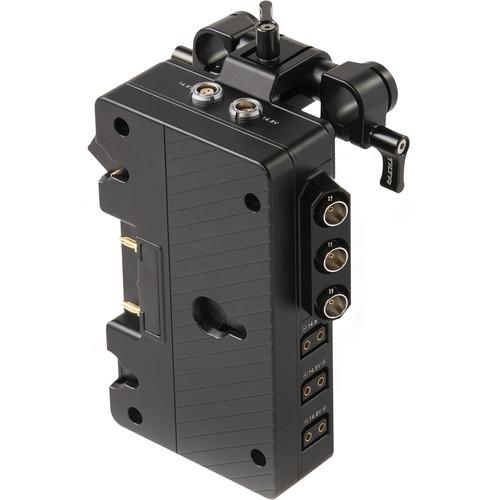

Designed to power your camera and accessories, the Universal Battery Plate from Tilta provides you a way to power your camera and onboard accessories from a single Gold mount battery. The battery plate attaches to your camera cage or 15mm rail system.

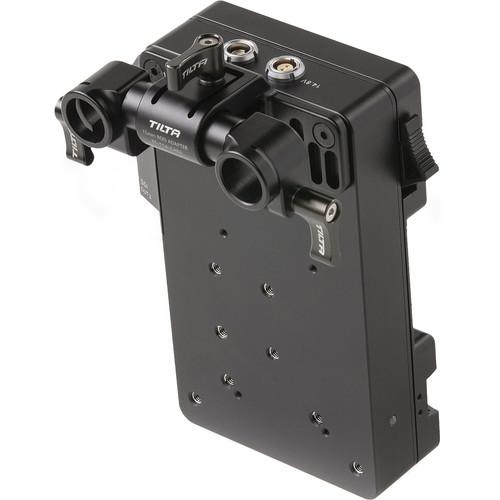

The plate passes through your battery's power to four 14.8V D-Tap outputs, one 14.8V 2-pin LEMO-type output, and one 14.8V 3-pin Fischer output. The plate also features one BNC SDI input and two BNC SDI outputs. The plate attaches to your camera, cage, or rig using the included 15mm LWS adapter and clamp.

*Note: The Tilta Universal Battery Plate does NOT come with a camera power cable. Power Cables for specific cameras must be purchased separately. Please check the input voltage of your camera to insure adequate power. Never over power your camera with a power cable as this may burn out your camera. Tilta is NOT responsible for user error in over powering your camera devices.

In the Box
  • Tilta Universal Battery Plate (Gold Mount)
  • 15mm Rod Attachment
  • 4 x Screw
  • Limited 1-Year Warranty on Electrical Parts
  • Limited 2-Year Warranty on Mechanical Parts
