Tilta Tiltaing V-Mount Battery Baseplate V2- Tilta Grey




Key Features
  • V-Mount Battery Baseplate
  • Attaches to Half or Full Cage
  • 14.8V D-Tap & DC Barrel Power Output
  • 15mm Rod Clamp

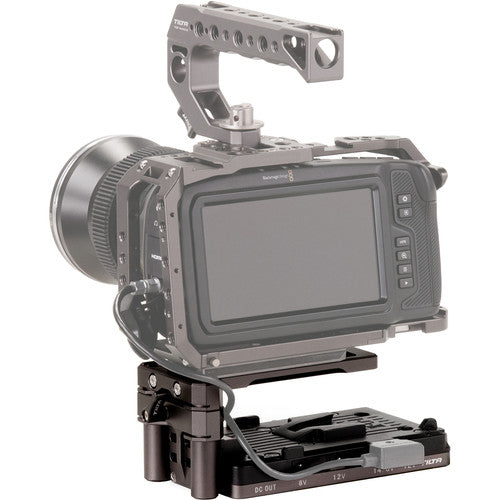

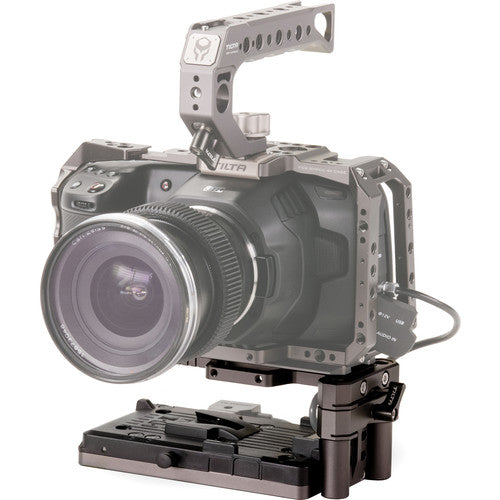

Power your camera and accessories with this V-mount Tiltaing Battery Baseplate v2 from Tilta. Mount the baseplate on the bottom of a Tilta half or full cage to power your camera and accessories using a separately available V-mount battery.

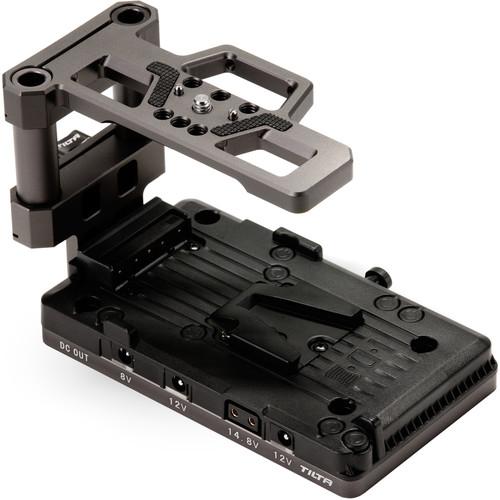

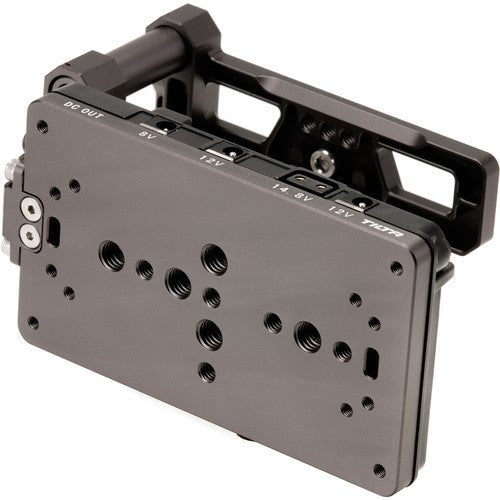

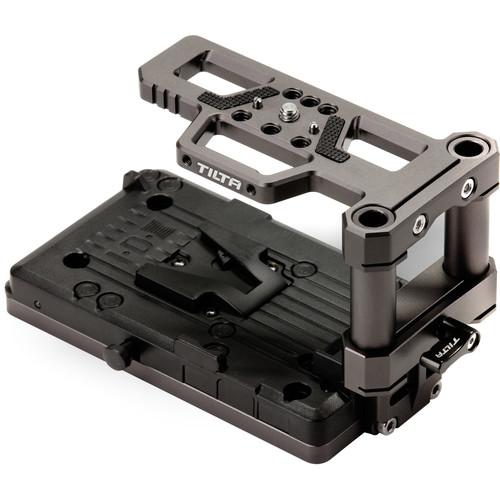

The baseplate features an adjustable riser on two 15mm vertical rods, which allows you to adjust the plate to the size of the battery and your camera. The attached battery plate features a 15mm LWS rod clamp so you can also mount on 15mm rods, and the plate also has a 14.8 VDC D-Tap output, an 8 VDC barrel output, and two 12 VDC barrel outputs to power your camera via a dummy battery or power cable or to power other accessories.

The baseplate is made of durable aluminum, stainless steel, and plastic. A camera mounting screw and all the assembly hardware required are included with the baseplate.

In the Box
  • Tiltaing Battery Baseplate v2 (V-Mount)
  • 4 x Rod Clamp Screw
  • 2 x 15mm Rod (2.4")
  • Adjustable Bottom Plate
  • 2 x Bottom Plate Screw
  • Camera Screw
  • Locking Thumbscrew
  • Limited 2-Year Warranty
